4 Way Distribution Block - SurLok 25mm²

  • Sale
  • Regular price $250.00

I have the ability to make a very limited amount (3 total) of these 4 way distribution blocks with a 2 week lead time.  The wait time has to do with ordering the SurLok plugs and receptacles, assembling, and shipping it out.  After these 4 are sold, there will be a wait list.

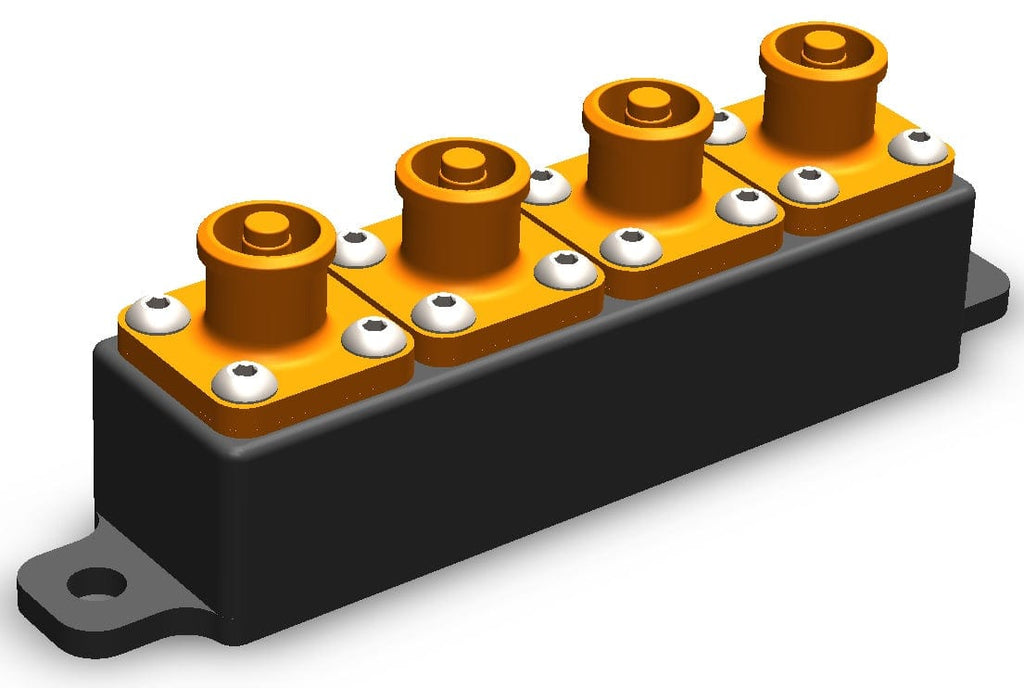

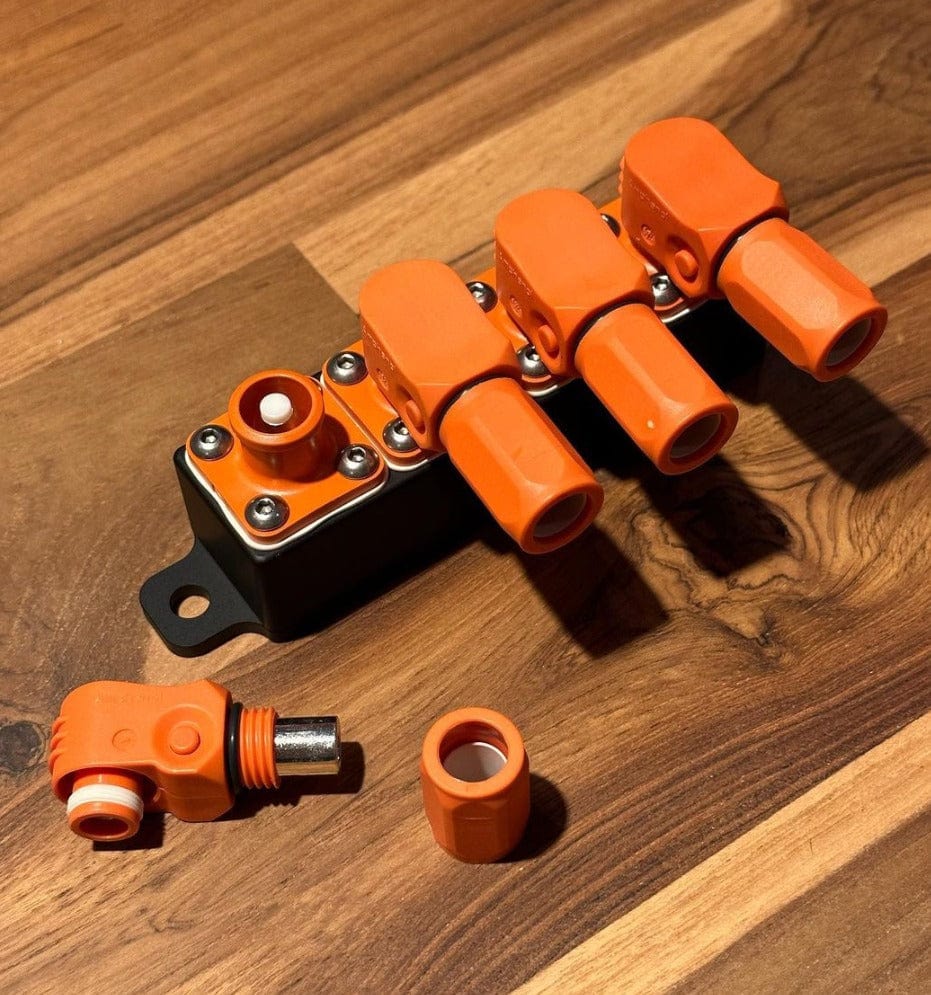

Finally, a way to distribute your 4ga (25mm²) wire that is not a screw terminal or a post/stud.  Amphenol SurLok Plus is a stout, quick disconnected, ip67 rated plug and receptacle used in many applications (if you are familiar with AIM's PDM power input, this is the same).

The housing is machined from 6061-T6, black anodized.  Internally a copper bus bar able to handle the 120a continuous amperage the SurLok's are rated for.  It has a base plate that uses 2x 6mm screws (not included) for mounting.  The hole to hole spacing is 5.14".

Default plug and receptacle color is ORANGE due to back order stock issues with RED and BLACK.   If you want RED or BLACK, please use the waitlist ordering page to specify your options.



1x Engineer Freely power distribution kit (housings, hardware, fully assembled)

4x SurLok 25mm² receptacles, 120A, Orange

4x SurLok 25mm² 90 degree plugs, 120A, Orange
